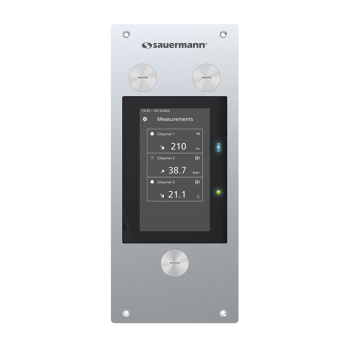

Multifunctional Transmitter

Ranks :

From -250 to 250 Pa
Magnitude that can be measured:
Temperature
Humidity
Differential pressure
Air flow and speed
CO, Co2 and VOC

Characteristics :

An integrated high-precision differential pressure sensor (-250 to 250 Pa / -1.0 to 1.0 inH2O)
Touch screen
Stainless steel box - IP 66
3 configurable analog outputs (4-20 mA / 0-20 mA or 0-10 V / 0-5 V)
1x RS-485 interface for Modbus RTU communication protocol
1x inputs for external interchangeable probes
From 1 to 3 parameters simultaneously
Audible alarms
Power supply 24 Vdc/Vac
Wireless communication (optional)
Data logging with the possibility of downloading via the Sauermann Control software/app

Technical Data sheet Learn More
